Brunel Hakim 1999 (Interactive Parameters)

This is an interactive version of the Brunel & Hakim (1999) model. It allows users to change the external input mean (μ) and noise (σ) parameters directly in the browser, and re-run the simulation.

Reference:

“Fast Global Oscillations in Networks of Integrate-and-Fire Neurons with Low Firing Rates” Nicolas Brunel & Vincent Hakim Neural Computation 11, 1621-1671 (1999)

// brunel_hakim1999_change_params.py
from brian2 import *

N = 5000
Vr = 10*mV
theta = 20*mV
tau = 20*ms
delta = 2*ms
taurefr = 2*ms
duration = .1*second
C = 1000
sparseness = float(C)/N
J = .1*mV
muext = 25*mV
sigmaext = 1*mV

eqs = """
dV/dt = (-V+muext + sigmaext * sqrt(tau) * xi)/tau : volt
"""

group = NeuronGroup(N, eqs, threshold='V>theta',
                    reset='V=Vr', refractory=taurefr, method='euler')
group.V = Vr
conn = Synapses(group, group, on_pre='V += -J', delay=delta)
conn.connect(p=sparseness)
M = SpikeMonitor(group)
LFP = PopulationRateMonitor(group)

run(duration, report='text', report_period=0.1*second)

<!-- brunel_hakim1999_change_params.html -->
<!doctype html>
<html lang="en-us">
<head>
    <meta charset="utf-8">
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8">
    <title>Brian simulation: Brunel & Hakim (1999)</title>
    <script src="https://cdn.plot.ly/plotly-3.1.0.min.js" charset="utf-8"></script>
    <script src="brian.js"></script>
    <script>
    var brian_sim = new BrianSimulation(result_plots=[{type: 'raster'}]);
    // wait until the website is fully defined
    window.onload = (event) => {
      brian_sim.init();
    }
    </script>
</head>
<body>
<h1>Fast Global Oscillations in Networks of Integrate-and-Fire Neurons with Low Firing Rates</h1>
<h2>Brunel & Hakim (1999)</h2>
<div id="brian_canvas" style='width: 600px; height:400px;'></div>
<progress id="brian_progress_bar" max=1.0 value=0.0 style="width: 90%"></progress>
<div id='brian_progress_text'></div>
<label for="sigmaext">σ: </label>
<input type="range" id="sigmaext"
       min="0" max="2" step="0.1" value="1"
       oninput="this.nextElementSibling.value = this.value">
<output>1</output>
<br>
<label for="muext">μ: </label>
<input type="range" id="muext"
       min="0" max="50" step="1" value="25"
       oninput="this.nextElementSibling.value = this.value">
<output>25</output><br>
<button type="button" id='brian_run_button'
        onclick="brian_sim.run({
        'neurongroup.muext': document.getElementById('muext').value/1000,
        'neurongroup.sigmaext': document.getElementById('sigmaext').value/1000
        });">
    Run
</button>
</body>
</html>

python - m brian2wasm brunel_hakim1999_change_params.py

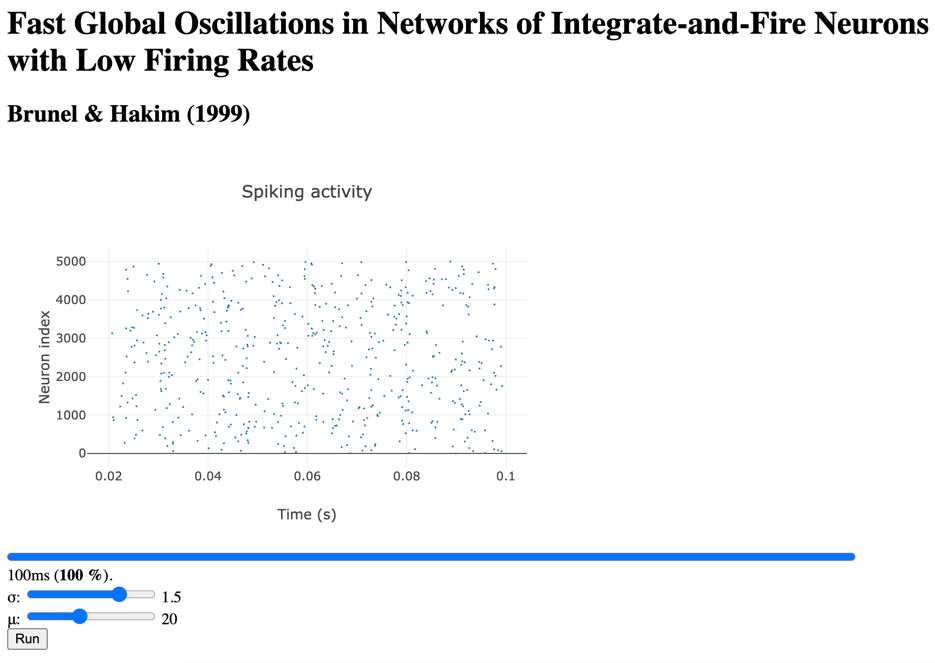

Output

../_images/result_brunel_hakim1999_change_params.png
